USE
The guide shoe is designed traction and the collection of large quantities of logs and wood on a steel rope through the winch. The advantage of rotating the slider to the ordinary in a simpler buckling tow chain and the prevention of winding ropes – despite turning the towed object (thick or firewood).

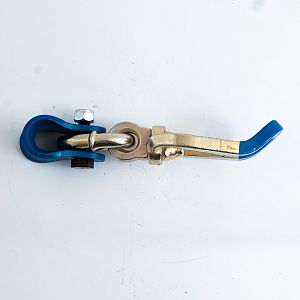

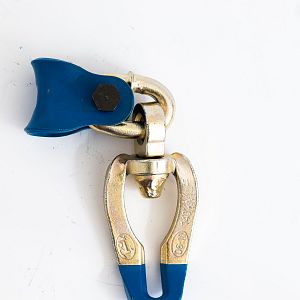

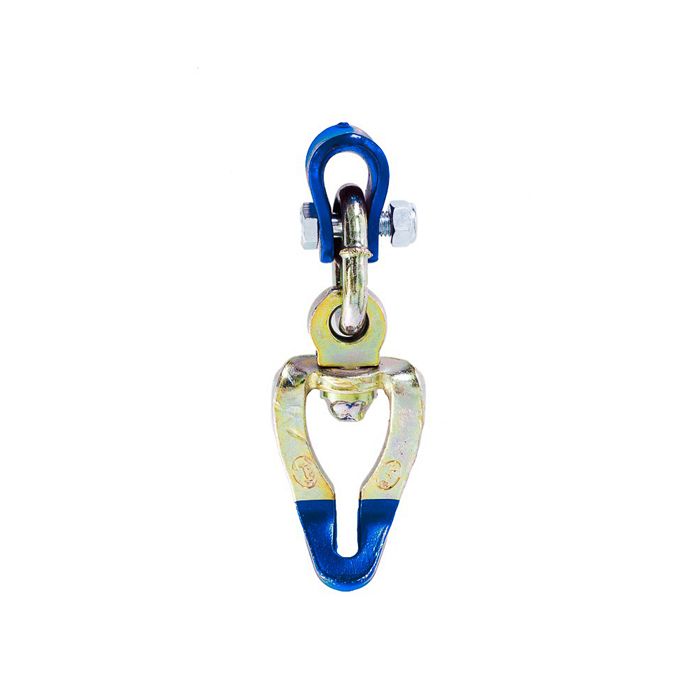

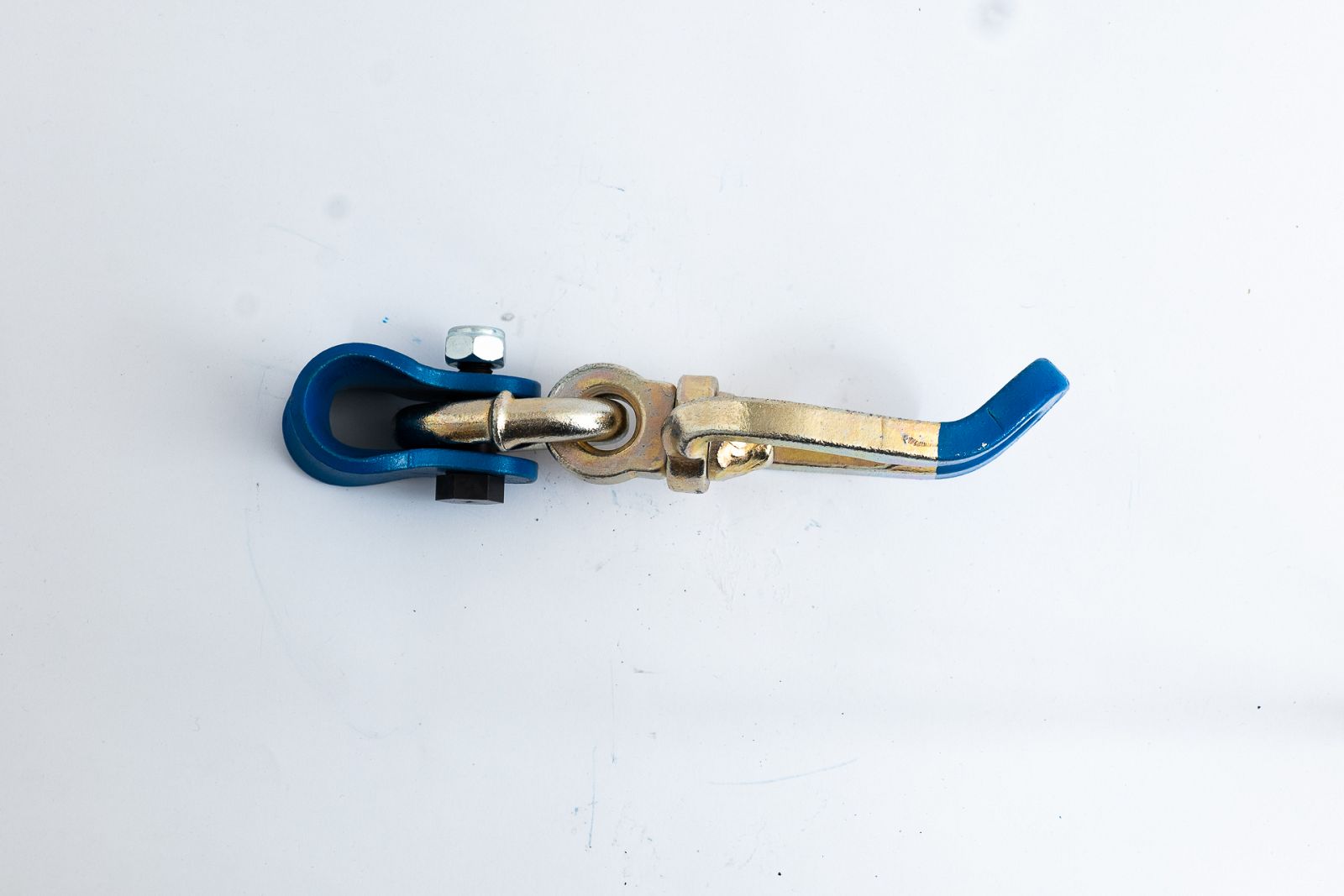

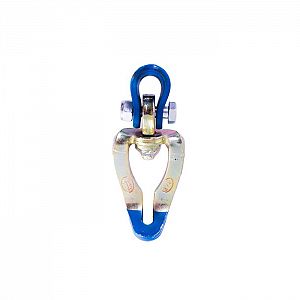

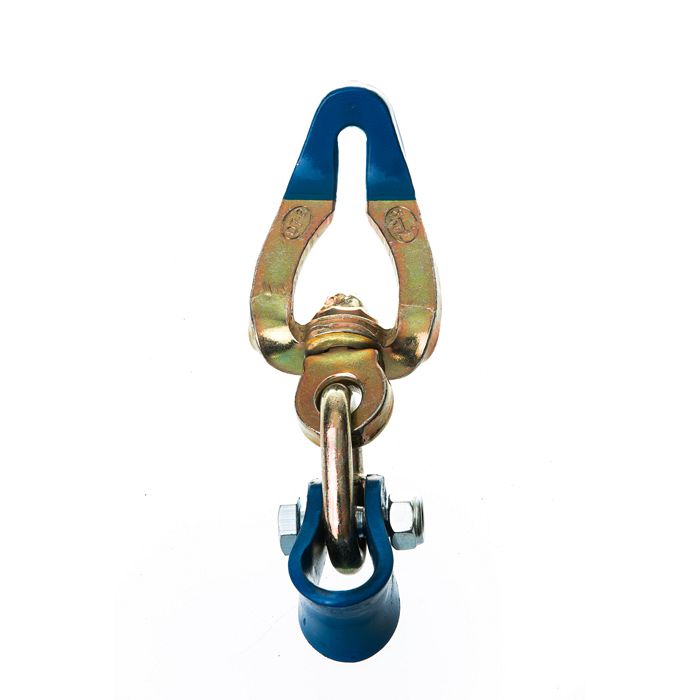

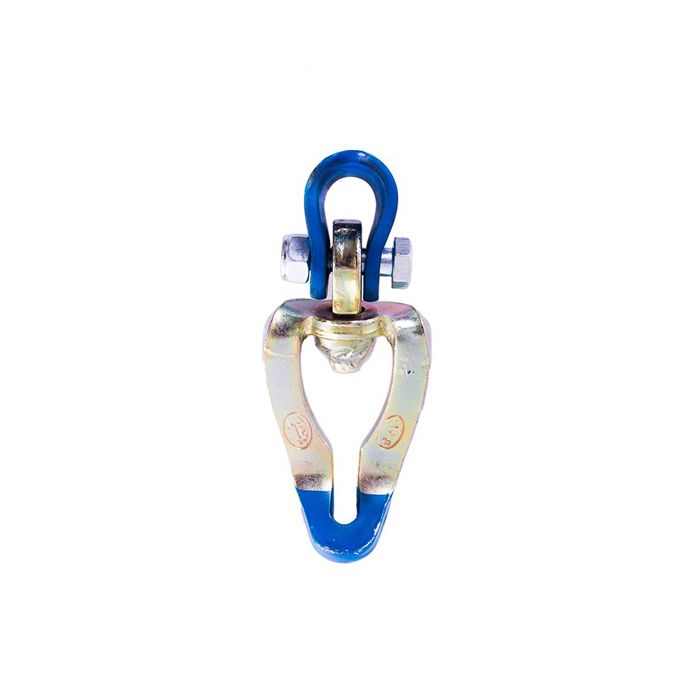

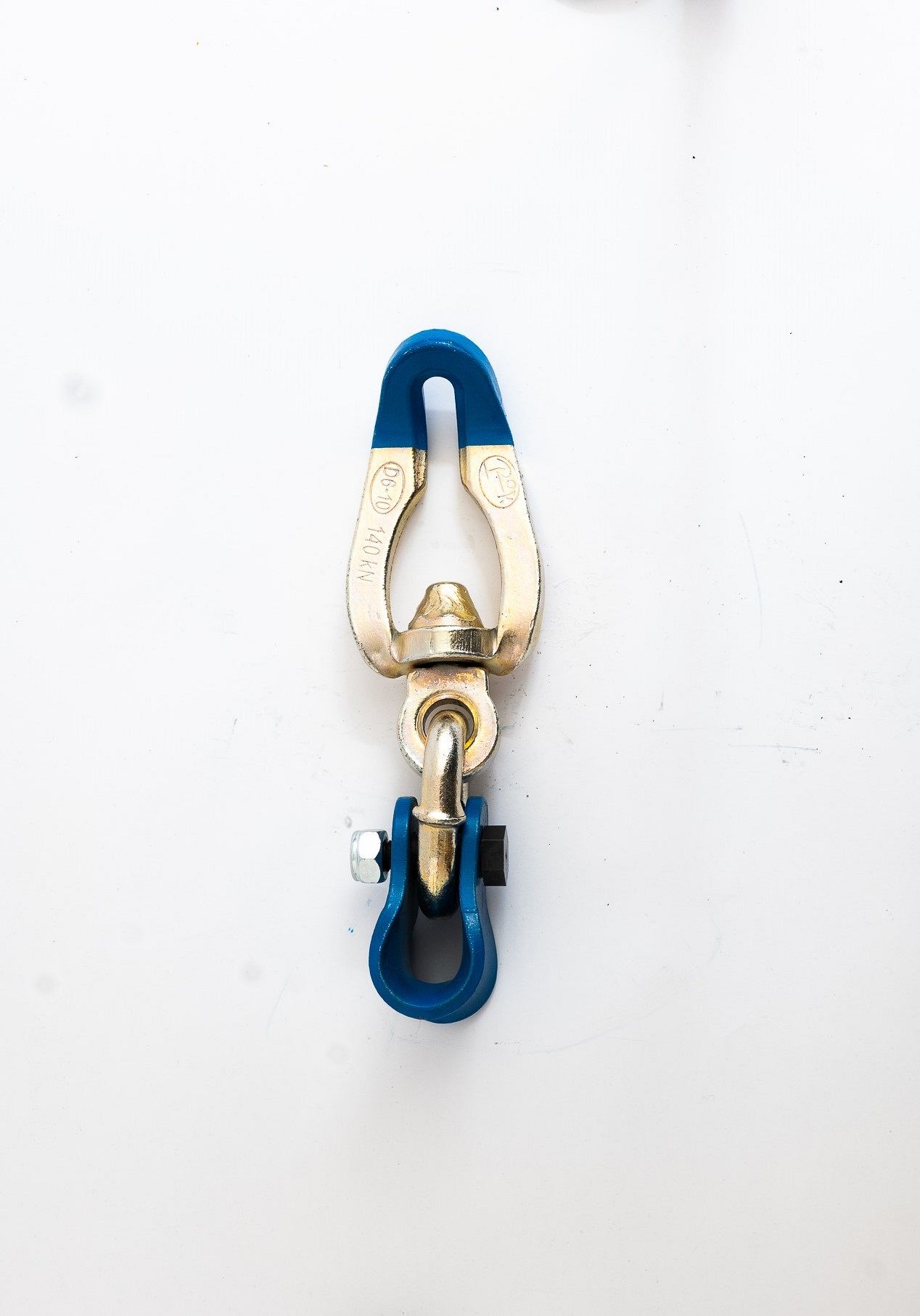

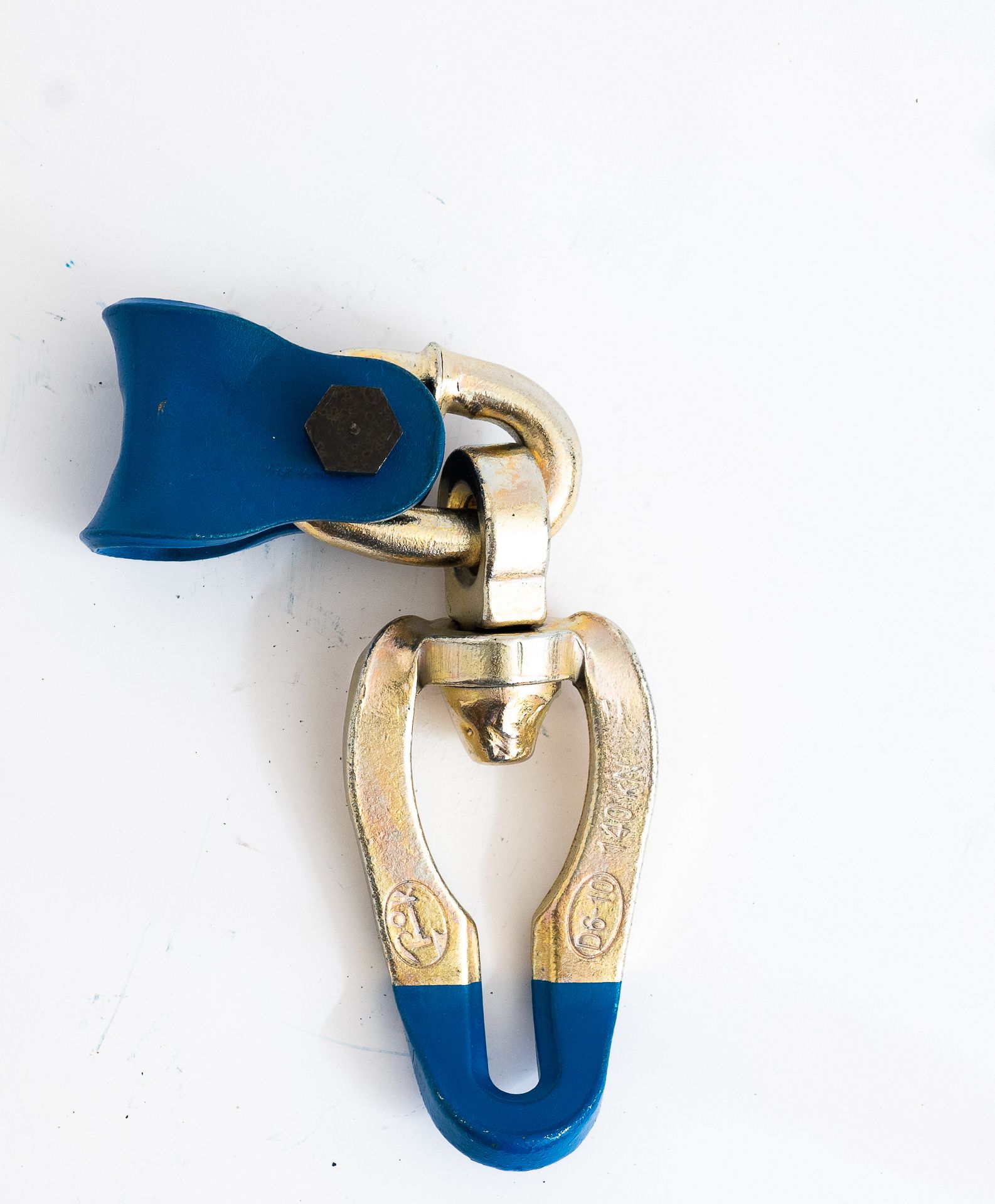

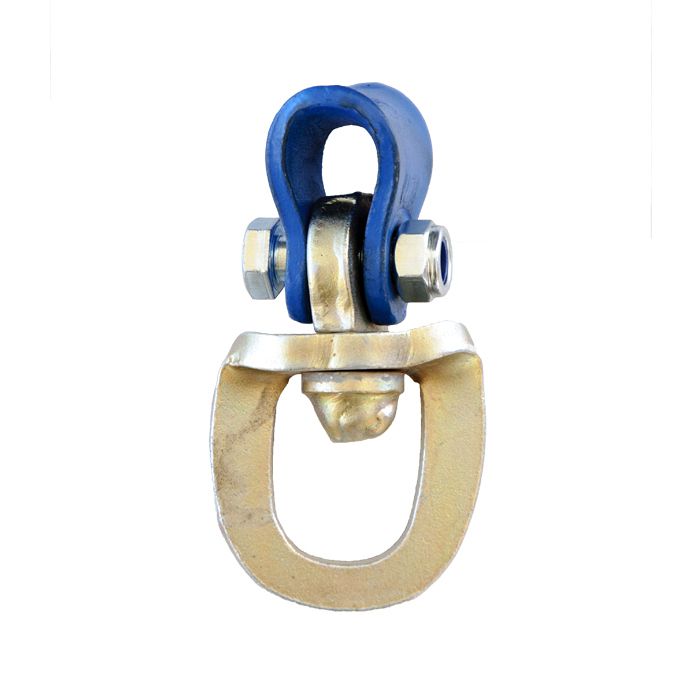

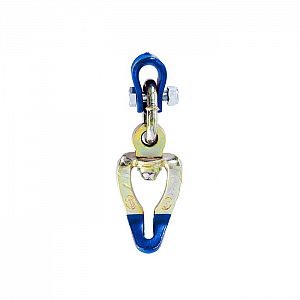

TECHNICAL DATA ̶ ROTATABLE GUIDE SHOE
- Capacity: 140 kN (14,000 kg)
- Weight: 1,250 g
- For the chain: Ø 6 ̶ 10 mm
- Galvanic surface protection product
TECHNICAL DATA ̶ ROTATABLE GUIDE SHOE
- Capacity: 75 kN (7,500 kg)
- Weight: 700 g
- For the chain: Ø 6 ̶ 8 mm
- Galvanic surface protection product

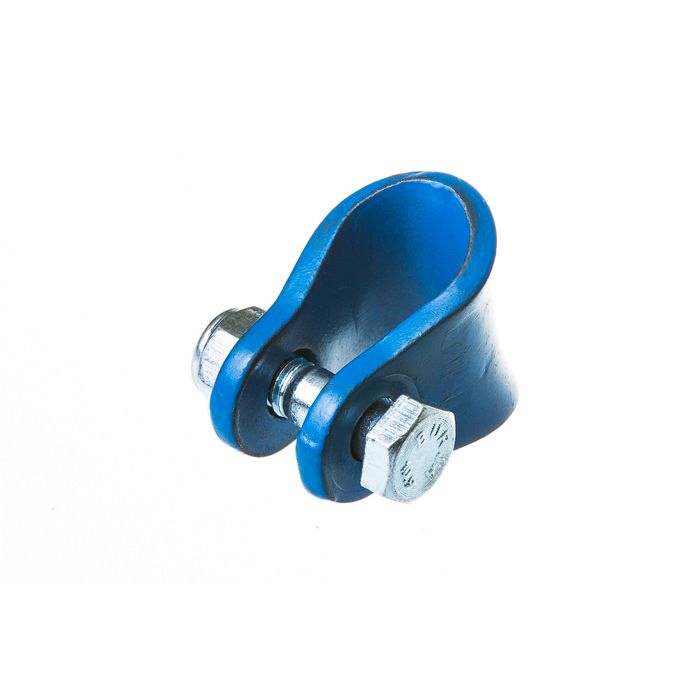

TECHNICAL DATA ̶ ORDINARY GUIDE SHOE
- Capacity: 75 kN (7,500 kg)
- Weight: 600 g
- For the chain: Ø 6 ̶ 8 mm
- Galvanic surface protection product
